JUKI LK-1903CSS301K

COMPUTER-CONTROLLED, HIGH-SPEED, LOCKSTITCH, BUTTON SEWING SYSTEM (IN COMPLETE SET)

---

Warranty: 1 year carry-in warranty against manufacturing defects but not including consumable parts and caused by inappropriate use by user.(Excluded technician accommodation and transportation charges) (Whole Malaysia service center)

Call/WhatsApp:

CUSTOMER SERVICE:

  016-723 0908         wasap.my/60167230908         tiktok/tarmahsdnbhd

---



The machine achieves sewing speed of 2,700sti/min The machine's thread-trimming etc. have been increased to significantly shorten total cycle time. The machine is provided as standard with 50 different sewing patterns at higher productivity. The LK-1903C is a lockstitch button sewing machine which is not only applicable to many different sewing specifications but also able to carry out cycle sewing and produces high-quality seams.

FEATURES :

Stable productivity

Higher productivity

• The LK-1903C achieves sewing speed of 2,700sti/min. The machine's starting, stopping, thread-trimming and automatic presser lifting speeds have been increased to significantly shorten total cycle time. This is a lockstitch button sewing machine that supports a variety of sewing patterns and cycle sewing.

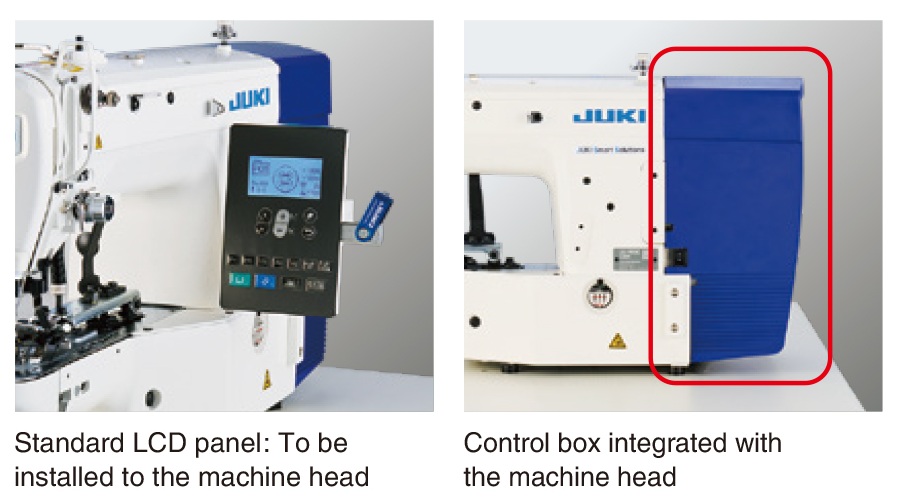

• The control box integrated with the machine head, originally designed by JUKI, is adopted. The number of standard patterns is 50. As many as 999 patterns (500,000 stitches) can be stored in memory. The new upright type operation panel is installed on the side face of the machine head to allow the operator to operate the machine without averting his/her eyes, during sewing, from the bartack being sewn. In addition, the table surface can be used widely. The operation panel can also be installed on the table as before.

• Since the machine is provided with an active tension mechanism, it is able to set a needle thread tension that matches various sewing conditions (such as thread, material and sewing speed) on the operation panel, store the data in memory and reproduce it.
• The needle thread tension can be separated according to stitching type or portion of a seam, such as the beginning part of the seam, in the middle of sewing and end of the seam (fastening stitch).

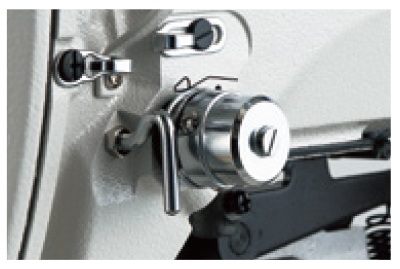

• Needle thread grasping mechanism helps produce consistent knot tying at the beginning of sewing. (This device has been factory-set to "invoking prohibited" status at the time of delivery.) In the case "T" is selected for work clamp foot/thread clamp

• The machine is provided as standard with auto-lifter that uses a stepping-motor system. This helps reduce operator fatigue.
• It is also possible to change over the stroke of the auto-lifter from a onestep stroke to a double-step stroke, which offers easier positioning of a material on the machine. For the double-step stroke, an intermediate stopping height can be established on the operation panel.
• The work clamp foot lift can be set to a maximum of 13mm.

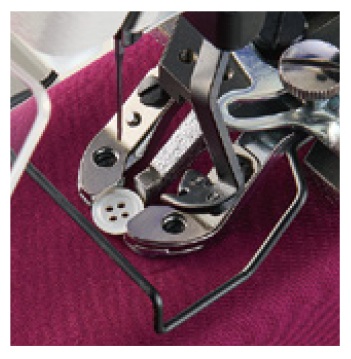

• The sewing starting point can be moved in the X and/or Y directions. When sewing buttons, the needle drop position at the beginning of sewing can be corrected using the operation panel.

• Thanks to our advanced dry-head technology, the frame (needle bar and thread take-up) no longer requires lubrication. This prevents the material from being stained with lubricating oil.
• Just a small quantity of clean oil is supplied from the oil tank to the hook.

• The direct-drive head (with no belt), which is directly connected to a compact AC servomotor, achieves outstanding. This head helps create a comfortable working environment with reduced vibration and noise.
• The arm section of the machine head is fitted with a hand pulley. This allows the operator to visually check the needle entry points.

• The machine is provided as standard with 50 different sewing patterns. The machine permits easy changeover of sewing patterns for effortless execution of an inexhaustible range of sewing specifications.

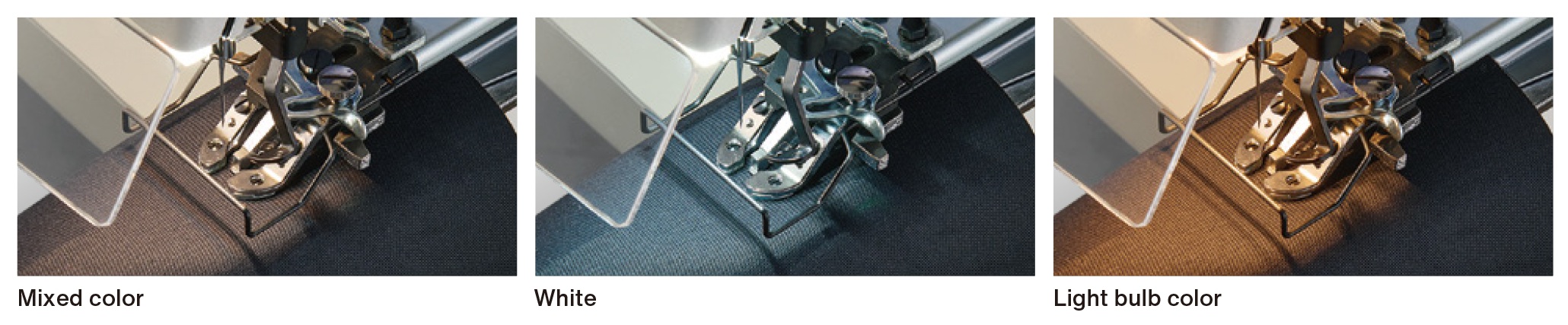

• The LED hand light is now provided with color matching function using two colors (white/light bulb color) in addition to the conventional dimming function. Illumination is adjustable in five levels and dimming is in 10 levels to help reduce the eye fatigue of the operator who is engaged in sewing operation for extended hours.

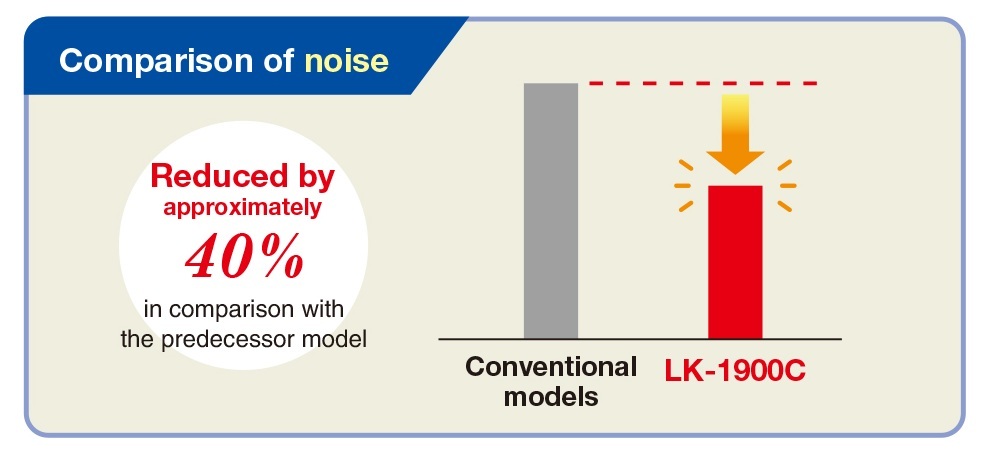

• This machine substantially reduces noise in compari-son with the predecessor models to provide the wok environment that takes reduction of the operator's fatigue into consideration.
• Reduction of noise of the sewing machine by approximately 40% -------Stress on the ears is relieved

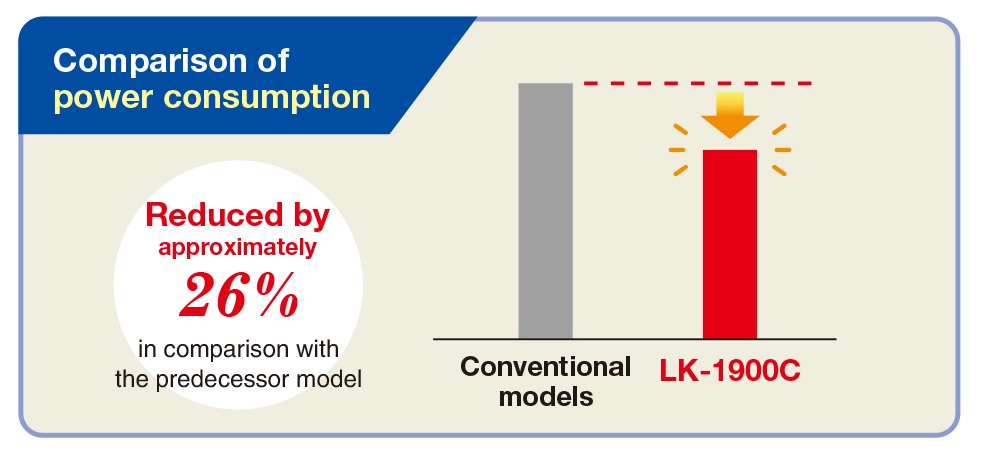

• Aiming at the creation of environment-conscious products, an encoder is mounted on the stepping motor. Thanks to the JUKI's unique control technology, power consumption of this machine is reduced by approximately 26% in comparison with the predeces-sor model.
