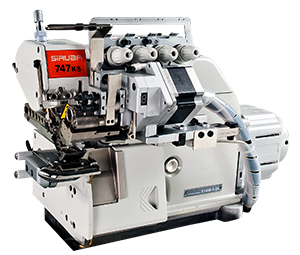

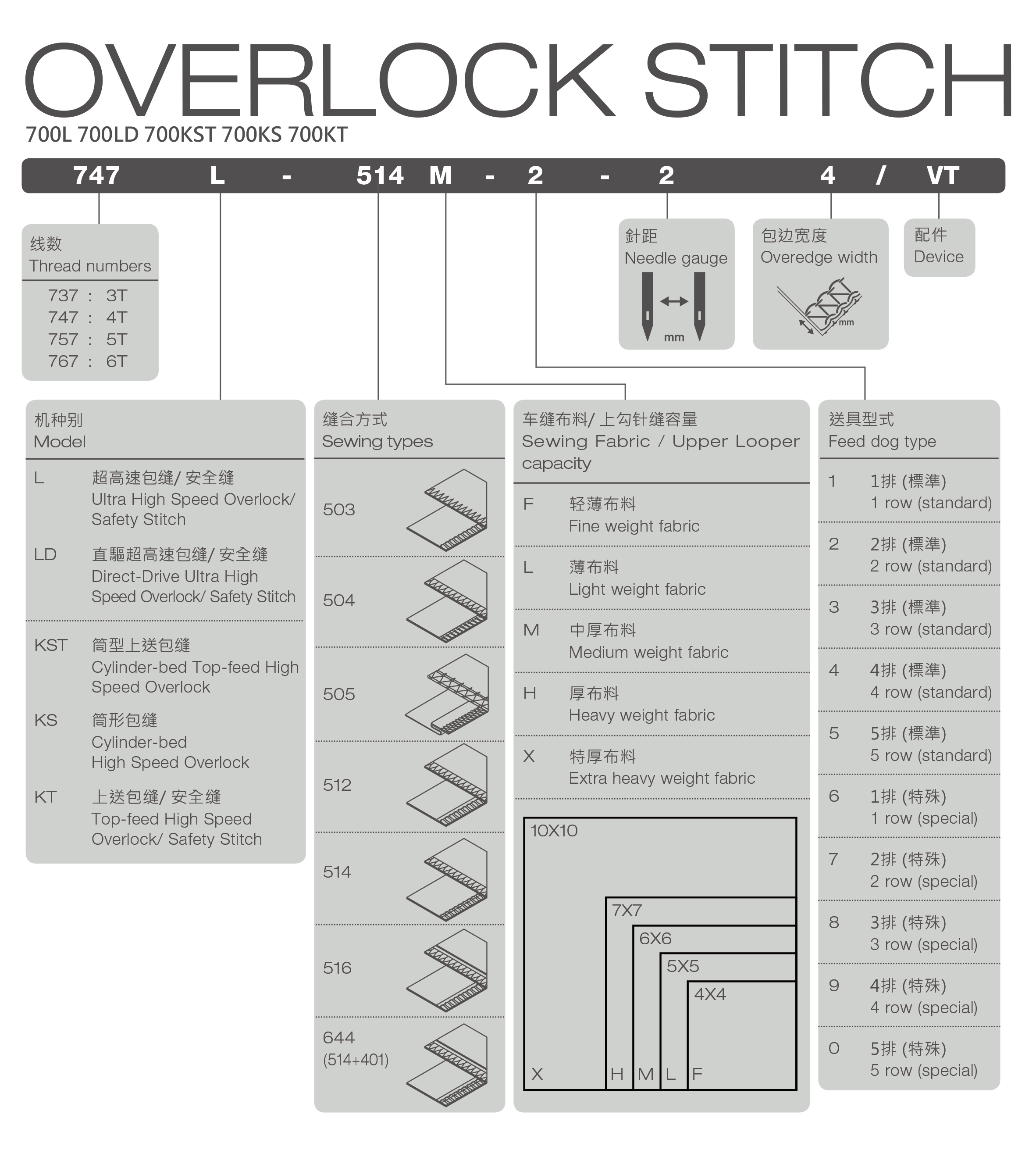

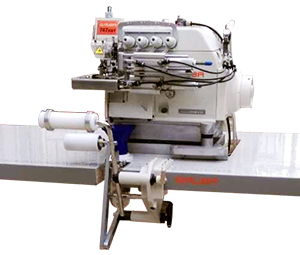

SIRUBA/747KST-514M-3-24/VT/DKKU1-0
4 THREAD CYLINDER-BED TOP-FEED HIGH SPEED OVERLOCK MACHINE WITH DIRECT DRIVE SERVO MOTOR (IN COMPLETE SET)

---

Warranty: 1 year warranty against manufacturing defects but not including consumable parts and caused by inappropriate use by user.

(Excluded technician accommodation and transportation charges)(Whole Malaysia service center)

Call/WhatsApp:

CUSTOMER SERVICE:

  016-723 0908         wasap.my/60167230908         tiktok/tarmahsdnbhd

---

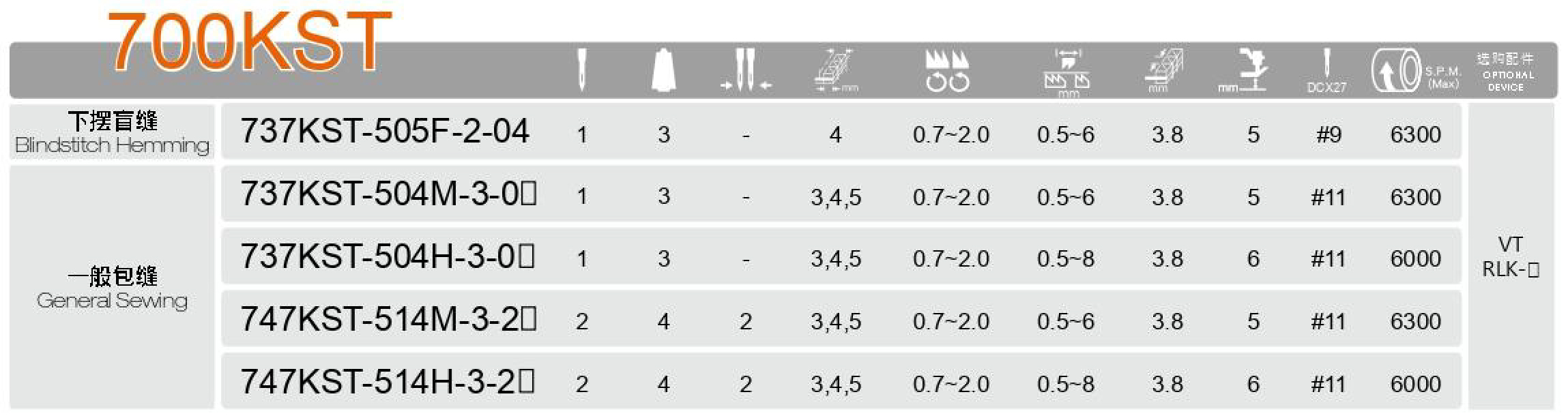

SPECIFICATION

High Speed Cylinder Bed Overlock Machine

Succeeding 700K Series’ features, we develop cylinder bed mechanism to extend to 700KS Series. Moreover, with brand new independent-drive top feed mechanism, it extends to 700KST Series.

‧ Cylinder Bed Circumference: 148mm
‧ Stitch Length Adjustment: Push-button
‧ Differential Feed Ratio Adjustment: Lever type
‧ Lubrication: Fully-automatic

---

EXCLUSIVE OPTIONAL ATTACHMENT

ESK Electric hemming guide

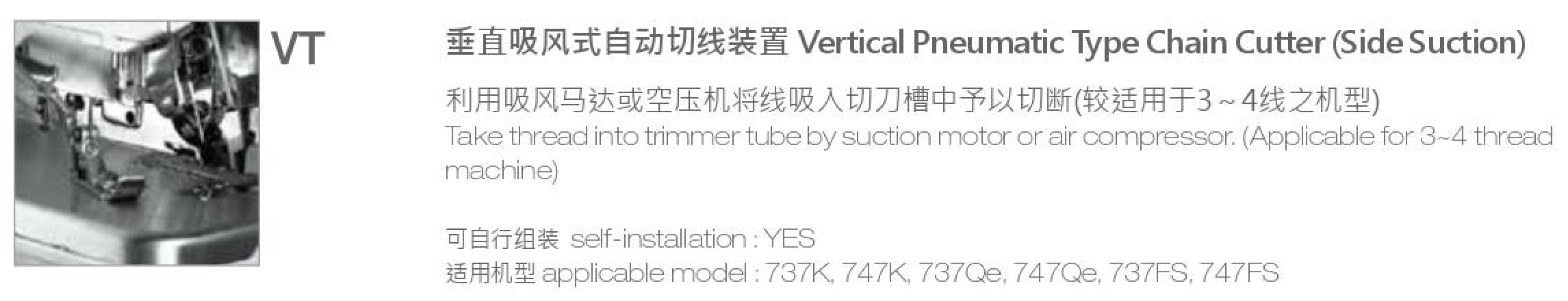

In blindstitch hemming operation, ESK prevents stitch skipping or ply-shifting at the cross seam sections. The full set includes direct-drive servo motor, VT side suction trimmer, TUA suction set, auto foot lifter.

---

EXCLUSIVE OPTIONAL ATTACHMENT

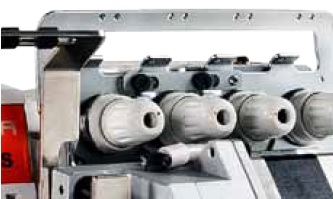

KCL Semi Auto Tubular Neckband Attaching
Pneumatic tape guide set holds the neckband’s right and left side. With tubular extending roller set, the neckband tape can move forward stably so that operators can focus on fabric control, which improves the efficiency and reduces the difficulty of sewing operation.


---

EXCLUSIVE OPTIONAL ATTACHMENT

LFD6K Multi-function computerized automatic elastic attaching
For attaching elastic tape on small openings of swimsuit, leotards or brief, etc. By computer control, with auto cutting and auto tape feeding, elastic tape sewing can be done by multi-section tension and length., with the below features:


Feed dog dropping function : when presser foot lifts, the feed dog drops to ensure tape feeding without obstacle.

Direct drive servo motor : Electrics highly integration realizes the accurate series movements.

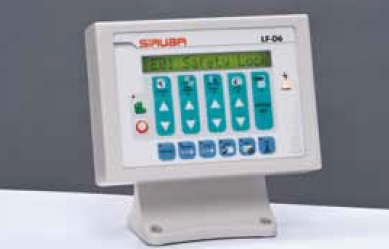

Touch panel : Graphical user interface is easy for setting. New added testing mode is easy for beginner.


---

EXCLUSIVE OPTIONAL ATTACHMENT

TAPE FEEDING / CUTTING

• 3 operation modes: Auto, Manual, and Test. Auto/ Manual section changing with LED indicate lamp.


• Precise feeding and the length setting unit is mm.


• Adjustable feeding of forward, delay, reverse, and forward feeding with reverse function.


• Speed compensation with 10 default values for choice.


• For different sewing situations, active feeding may be applied by forward/ reverse ‧when sewing.If sewing operation failed, auto/ manual return to the first section of sewing program.


• Air blow tape feeding function.

---

EXCLUSIVE OPTIONAL ATTACHMENT

SETTING /MEMORY

• Memory of sewing program set: 10 sets

• Program section: 18 sections.

• LCD panel shows setting status, operation mode, and error code.

---

EXCLUSIVE OPTIONAL ATTACHMENT

Additional Function

• Thread releasing

• Suction trimmer’s energy saving: Starting/ Ending air suction’s time is adjustable. (by stitch counting)

• Auto presser foot lifting by paddle step-back.


---

EXCLUSIVE OPTIONAL ATTACHMENT

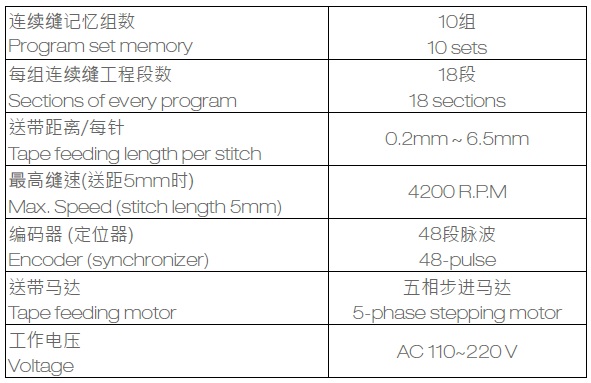

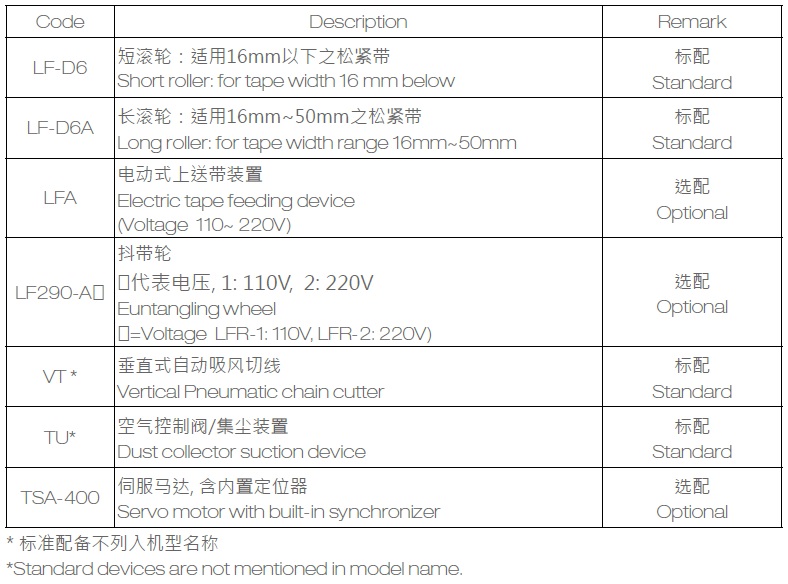

LFD6 SPECIFICATION

---

EXCLUSIVE OPTIONAL ATTACHMENT

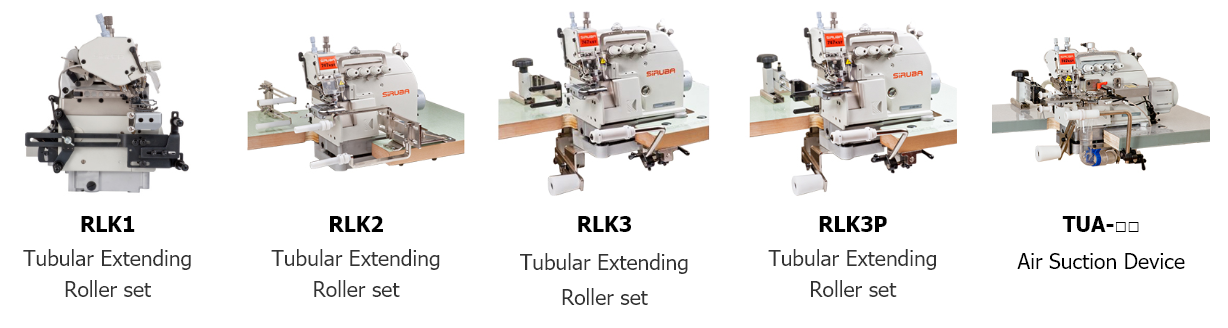

OPTIONAL

---

EXCLUSIVE OPTIONAL ATTACHMENT

---

---

---
