DUERKOPP ADLER/869-M ECO / CLASSIC

SINGLE OR TWIN NEEDLE LOCKSTITCH CYLINDER ARM MACHINES WITH VERTICAL HOOK FOR UNIVERSAL USE (IN COMPLETE SET)

Warranty: 1 year carry-in warranty against manufacturing defects but not including consumable parts and caused by inappropriate use by user.(Excluded technician accommodation and transportation charges) (Whole Malaysia service center)

Call/WhatsApp:

CUSTOMER SERVICE:

  016-723 0908         wasap.my/60167230908         tiktok/tarmahsdnbhd

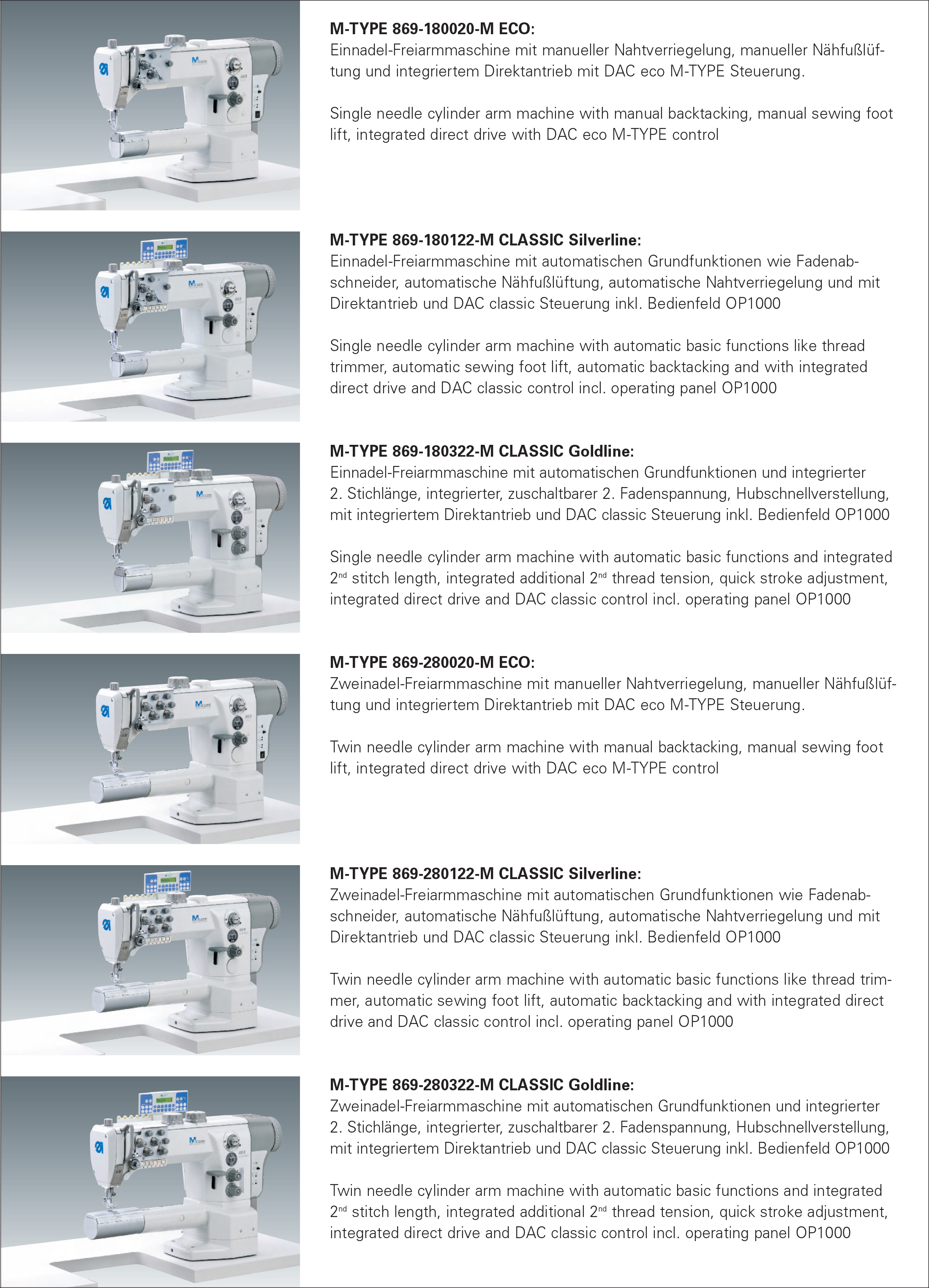

PRODUCT VARIANTS :

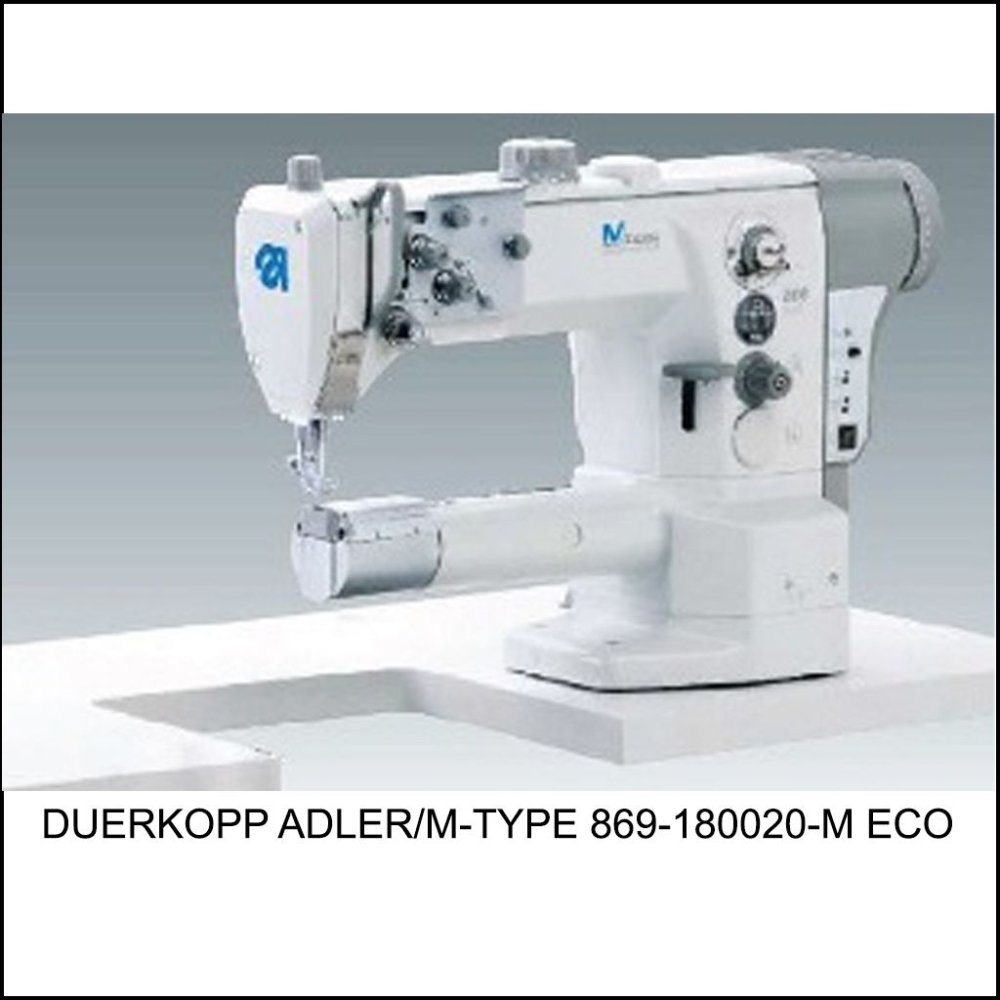

DUERKOPP ADLER/M-TYPE 869-180020-M ECO : Single Needle Cylinder Arm Machine With Manual Backtacking, Manual Sewing Foot Lift, Integrated Direct Drive With DAC ECO M-Type Control In Complete Set

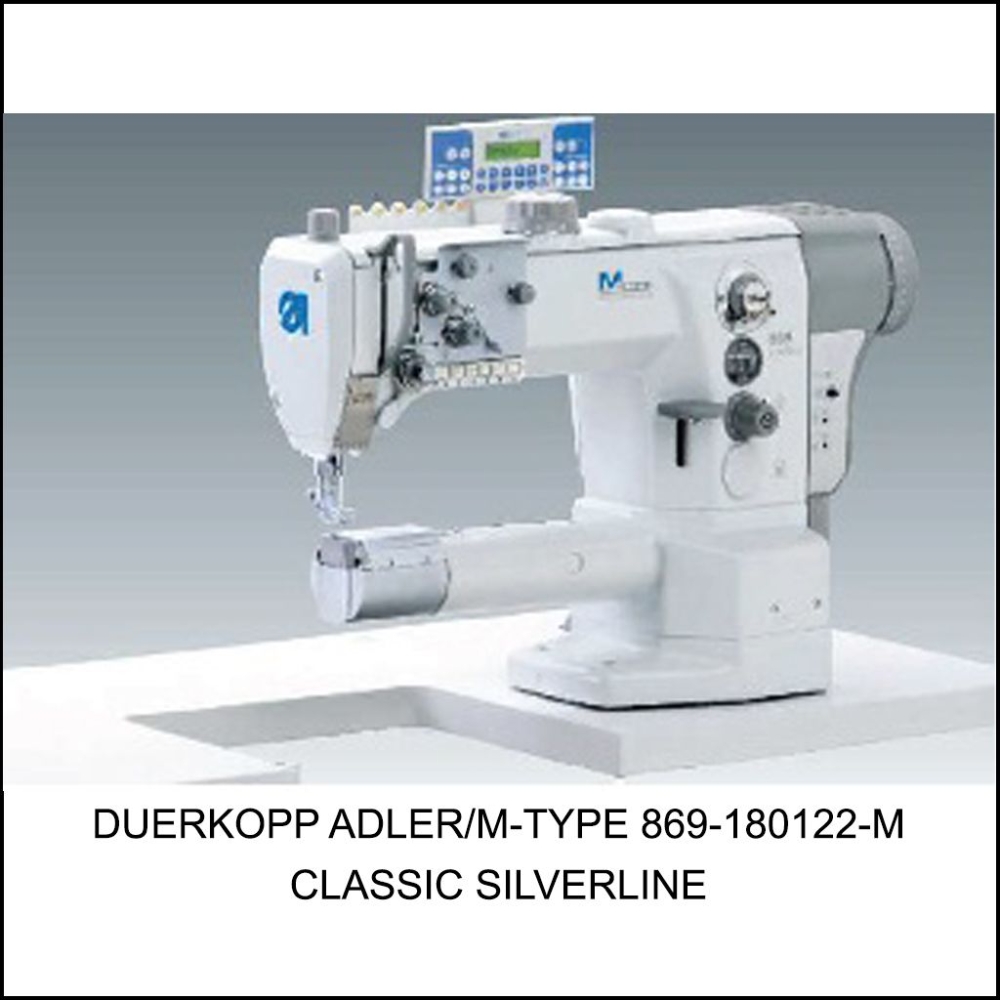

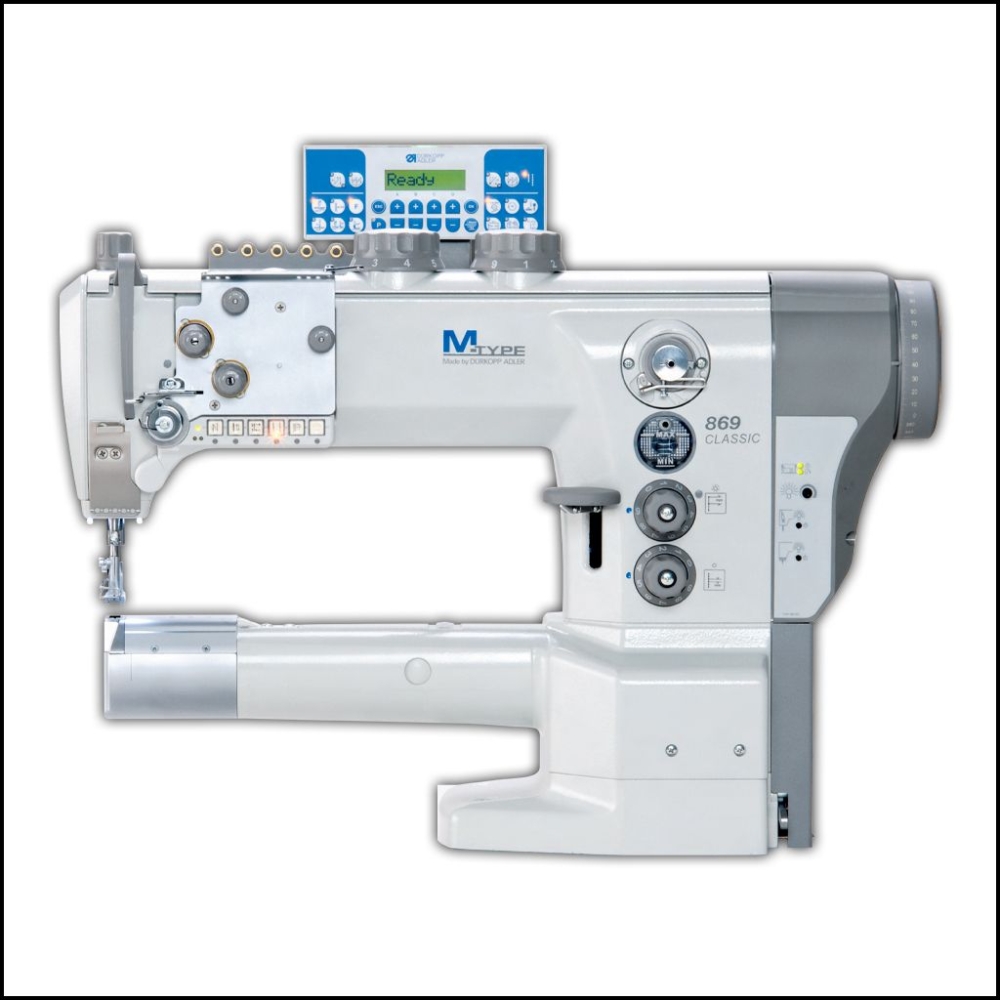

DUERKOPP ADLER/M-TYPE 869-180122-M CLASSIC SILVERLINE : Single Needle Cylinder Arm Machine With Automatic Basic Functions Like Thread Trimmer, Automatic Sewing Foot Lift, Automatic Backtacking And With Integrated Direct Drive And Dac Classic Control Incl. Operating Panel OP1000 In Complete Set

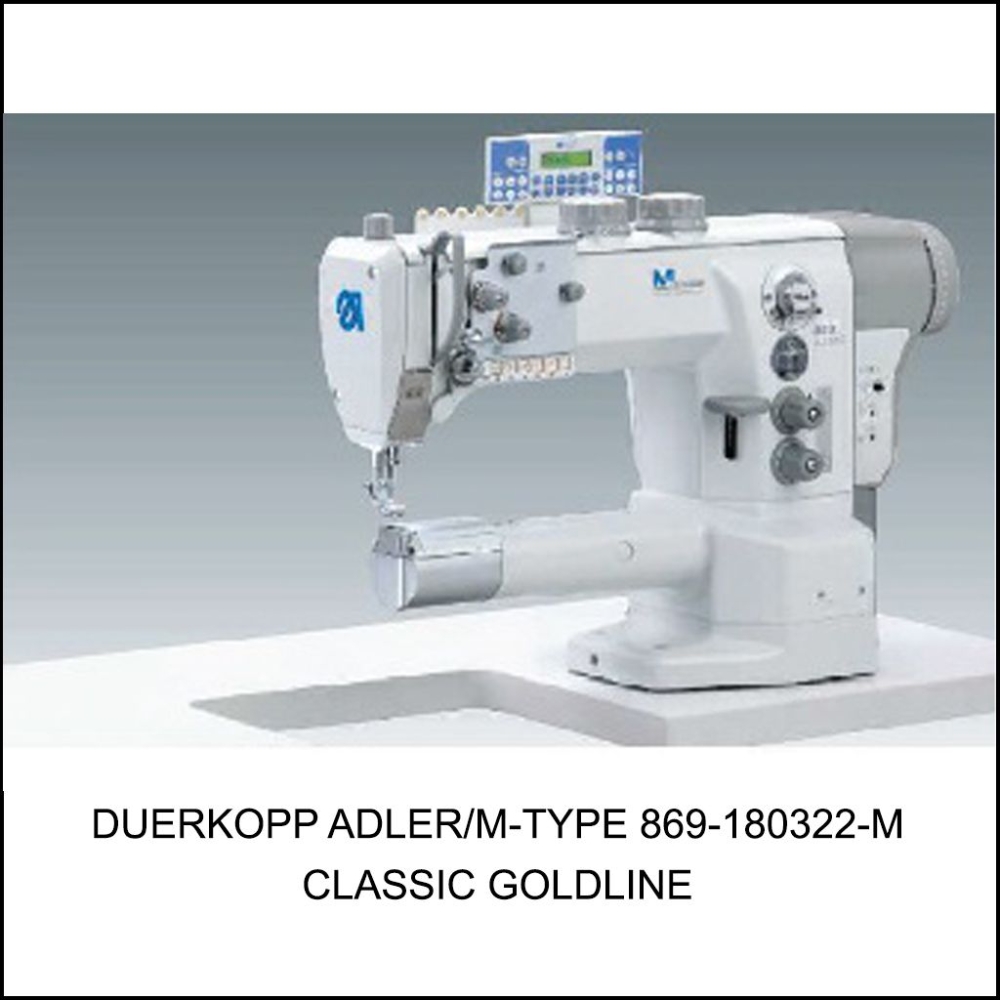

DUERKOPP ADLER/M-TYPE 869-180322-M CLASSIC GOLDLINE : Single Needle Cylinder Arm Machine With Automatic Basic Functions And Integrated 2nd Stitch Length, Integrated Additional 2nd Thread Tension, Quick Stroke Adjustment, Integrated Direct Drive And Dac Classic Control Incl. Operating Panel OP1000 In Complete Set

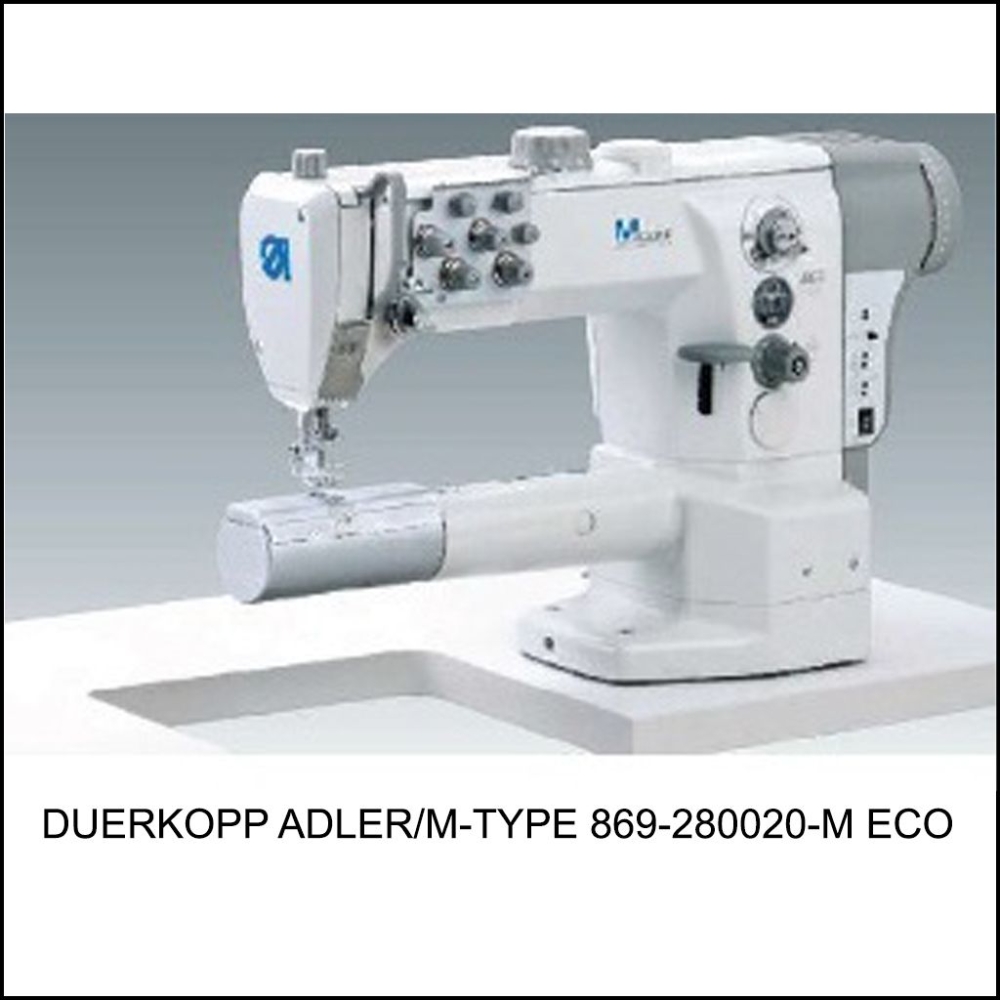

DUERKOPP ADLER/M-TYPE 869-280020-M ECO : Twin Needle Cylinder Arm Machine With Manual Backtacking, Manual Sewing Foot Lift, Integrated Direct Drive With DAC ECO M-Type Control In Complete Set

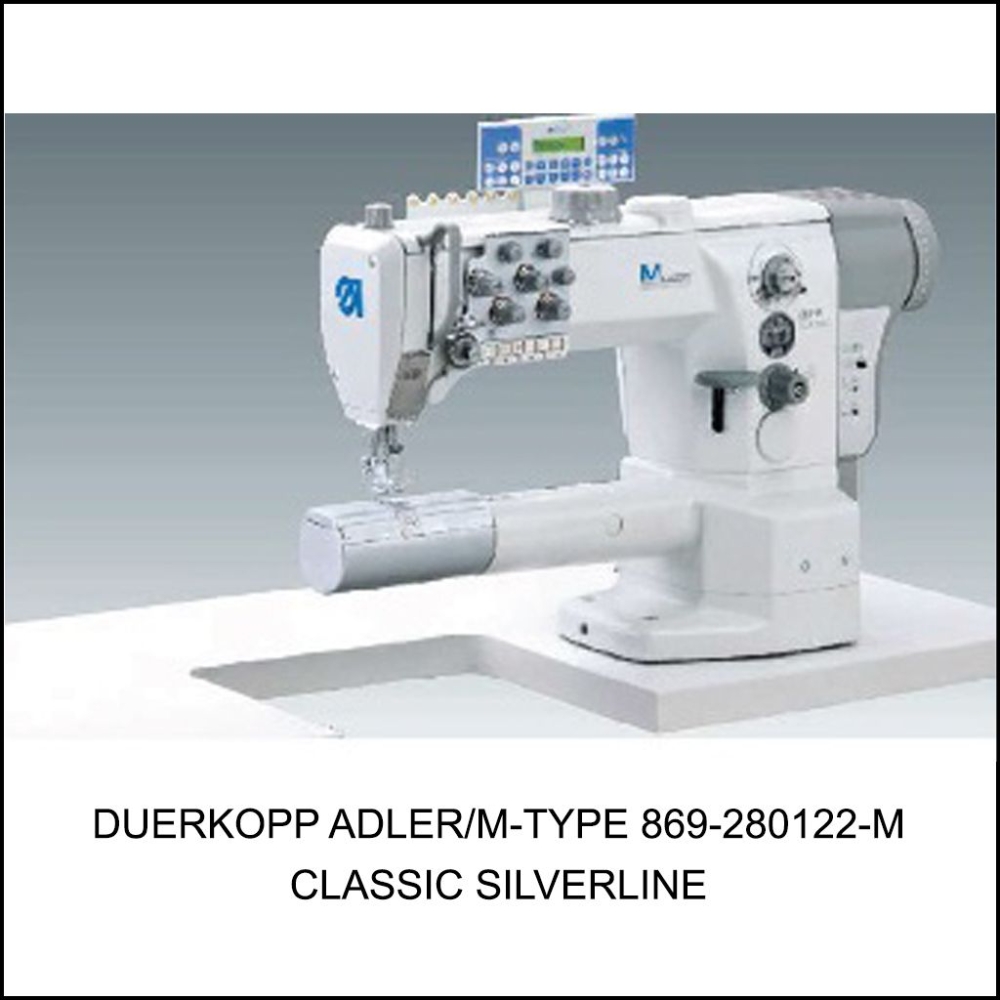

DUERKOPP ADLER/M-TYPE 869-280122-M CLASSIC SILVERLINE : Twin Needle Cylinder Arm Machine With Automatic Basic Functions Like Thread Trim-Mer, Automatic Sewing Foot Lift, Automatic Backtacking And With Integrated Direct Drive And Dac Classic Control Incl. Operating Panel OP1000 In Complete Set

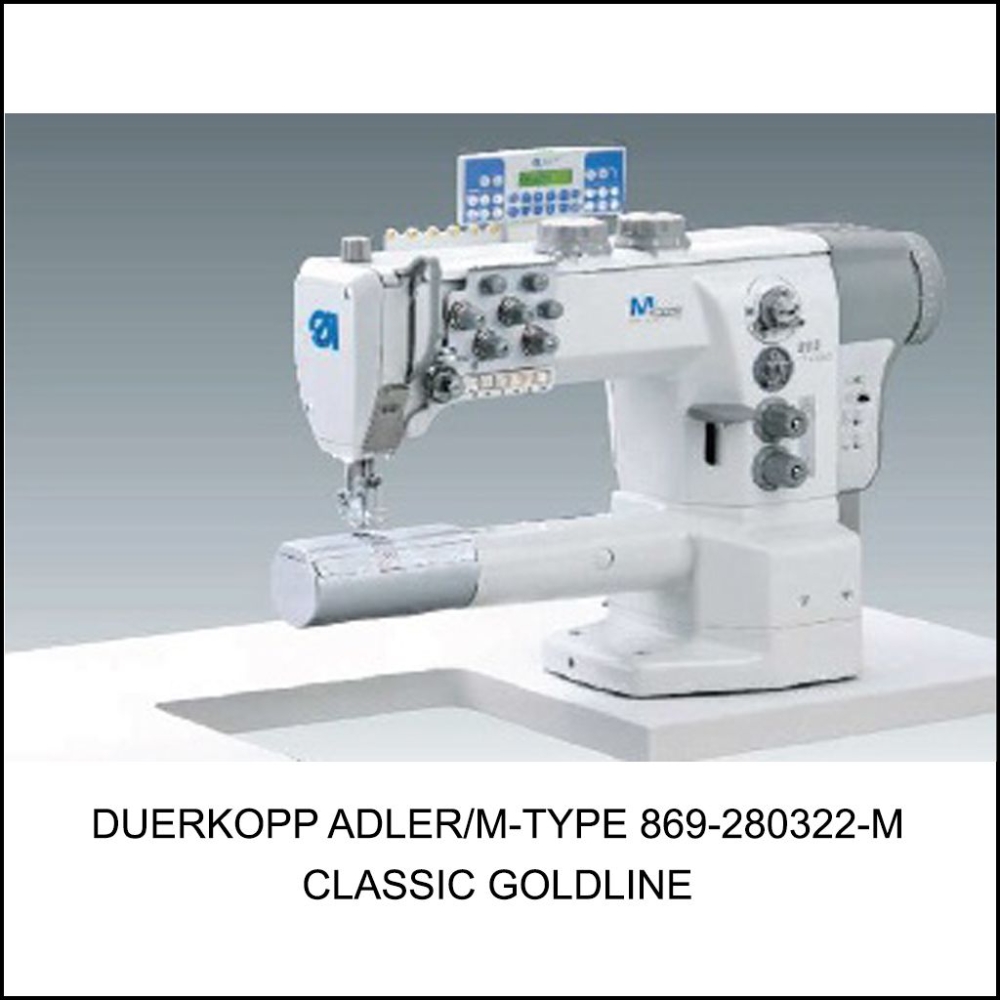

DUERKOPP ADLER/M-TYPE 869-280322-M CLASSIC GOLDLINE : Twin Needle Cylinder Arm Machine With Automatic Basic Functions And Integrated 2nd Stitch Length, Integrated Additional 2nd Thread Tension, Quick Stroke Adjustment, Integrated Direct Drive And DAC Classic Control Incl. Operating Panel OP1000 In Complete Set

M-TYPE 869-M - SPECIALIST FOR 3-DIMENSIONAL WORKPIECES :

Special sewing tasks in three-dimensional or tubular work-pieces in the field of technical textiles, shoes and leather goods, soft luggage and similar products make high demands on the operating means. The single and twin needle cylinder arm machines class 869-M with large vertical hooks, slim cylinder arm and the performance parameters typical for the M-TYPE aro specially designed for those tasks. Heavyweight materials and sewing threads up to a thread size of Nm 10/3 can be processed with these machines without any problem.

A special feature of the 869-M is its ability to bind the mate-rial edge with low tension. For this oporation the bottom feed stroke can be deactivated by just a few steps which enables an optimum feeding movement. Sewing equipment especially adapted to this sewing operation allows a precise binding result combined with maximum productivity and quality.

Due to the innovative drive concept of this machine class -consisting of a powerful sewing drive integrated in the machine head and a DAC control unit - these operating means offer outstanding performance parameters with regard to penetration force, dynamics and positioning accu-racy.

Μ-ΤΥΡΕ 869-M ECO / CLASSIC - YOUR ADVANTAGES :

• 6 subclasses with efficient equipment features
• 869-M ECO - high functionality and flexibility at an attrac-tive price
• 869-M CLASSIC Silverline - with automatic basic func-tions for high productivity
• 869-M CLASSIC Goldline with automatic basic functions and further additional functions for higher productivity and increased sewing comfort
• Slim machine arm diameter of only 78 mm facilitates the handling of difficultly accessible seam areas
• Single needle machines with adjustable bottom feed (with stroke for topstitching operations, without stroke for binding operations)
• Quick change to binding applications
• Vertical hook with large bobbin capacity for longer sewing cycles and a wider sewing thread spectrum
• High productivity due to increased speed up to 2,800 stitches/min.
• Excellent climbing properties avoid shortened stitches and material damage at thick spots or cross seams
• Smooth, adapted sewing and feeding properties by means of quick stroke adjustment with automatic speed reduction (CLASSIC Goldline)
• Thread trimming system for sewing threads up to 10/3 (CLASSIC)
• Pneumatic additional thread tension for excellent stitch formation when sewing over thick spots (CLASSIC Gold-line)

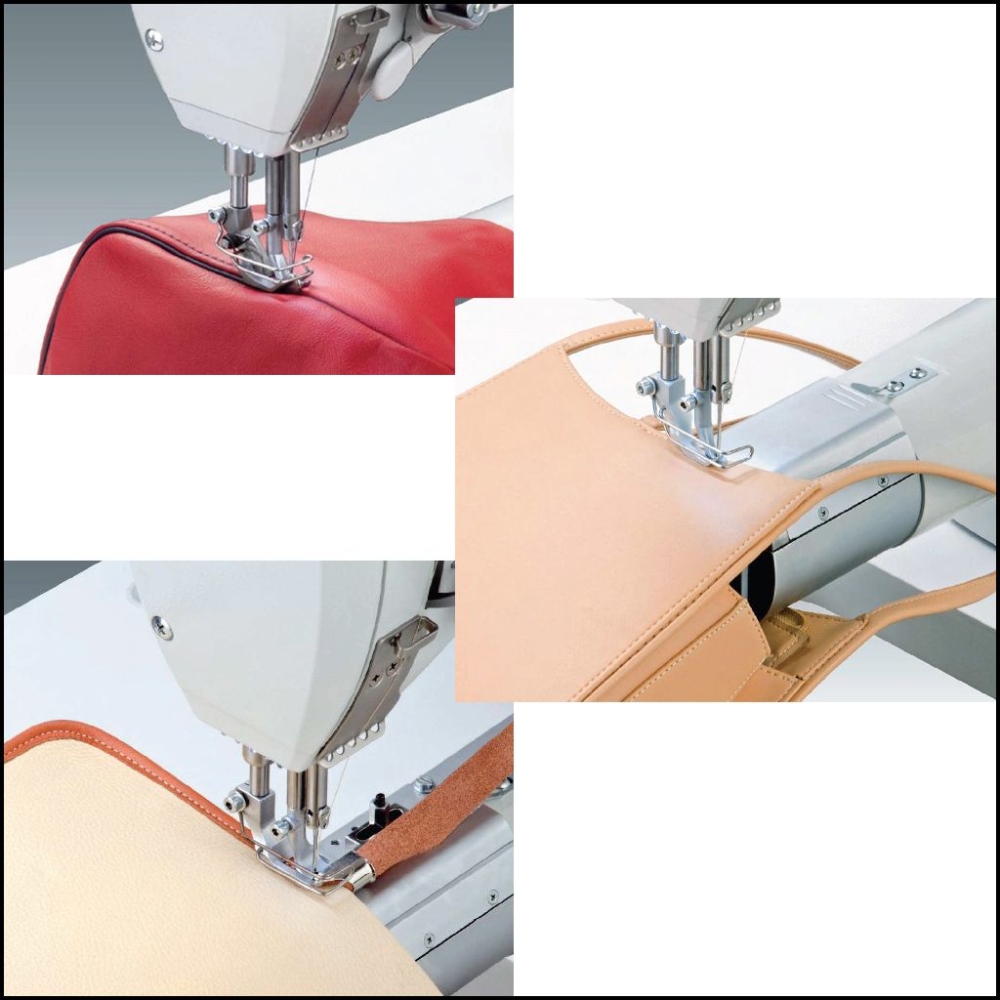

SINGLE NEEDLE APPLICATIONS :

869-180020-M ECO -
Low-tension binding operations in bags and soft luggage due to moving bind-ing device


869-180322-M CLASSIC Goldline -
Perfect topstitching of lap-felled seams in leather goods


869-180020-M ECO -
Universal decorative stitching on hand-bags

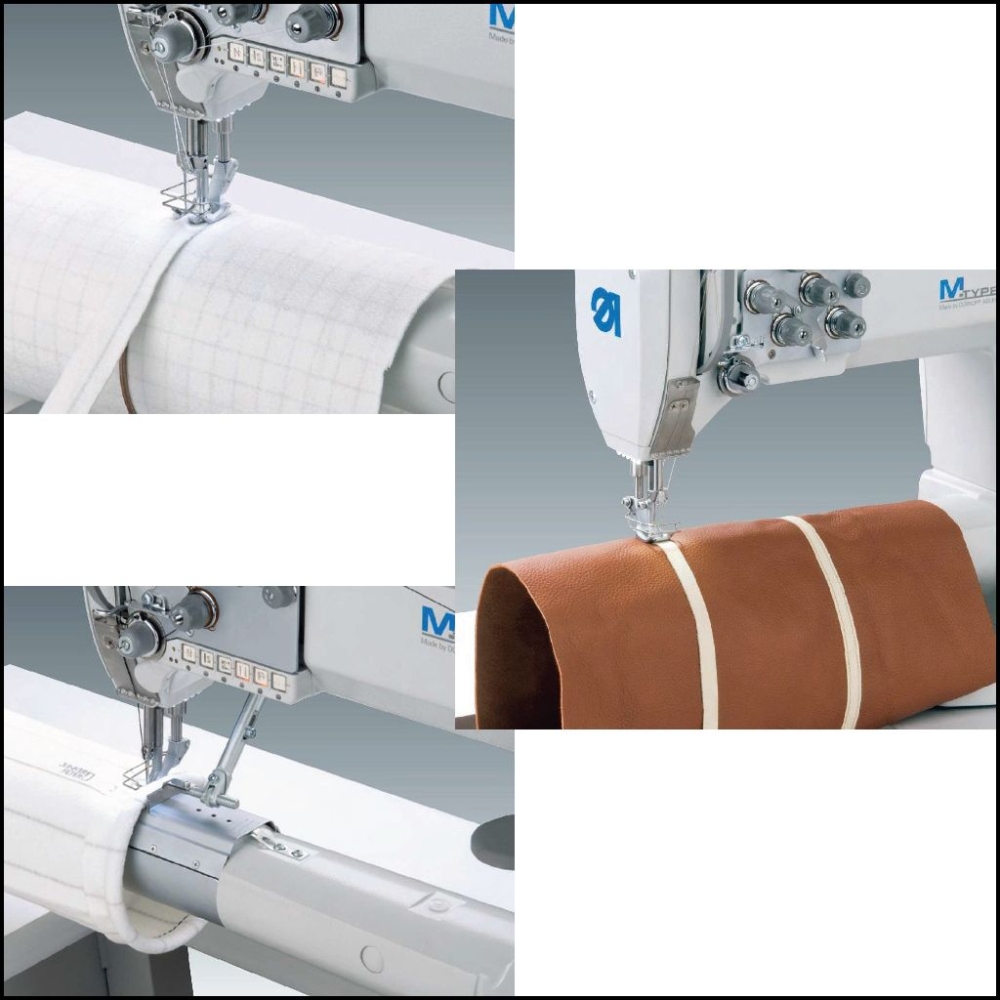

SINGLE AND TWIN NEEDLE APPLICATIONS :

869-180122-M CLASSIC Silverline --
Attaching gasket rings to tubular filters


869-280020-M ECO -
Attaching decorative leather strips to leather goods with narrow needle dis-tance


869-280322-M CLASSIC Goldline -
Special sewing equipment for attach-ing metal rings to tubular filters


869-M - WITH THE TYPICAL EQUIPMENT FEATURES OF THE M-TYPE SERIES :

• Integrated direct drive with DAC control unit
• The powerful and effective feeding system with bottom feed, needle feed and alternating feet guarantees a trou-ble-free and displacement-free material feed when pro-cessing most different fabric thicknesses and structures
• The extremely high sowing foot lift up to 20 mm max. facilitates the feeding and removing of bulky workpieces
• High top feed stroke up to 9 mm allows the safe climbing over thick material plies
• Up to 9 mm long stitches for standard seams and decora-tive topstitching
• The large clearance (335 mm wide and 125 mm high) facilitates the handling of tubular workpieces
• Excellent view on the sewing area
• Integrated bobbin winder with winding starting aid
• Low noise level
• Automatic backtacking (CLASSIC)
• Integrated second stitch length (CLASSIC Goldline)
• Integrated LED sewing lamp for a shadowless lighting of the sewing point (CLASSIC Goldline)
• Integrated 6-function keypad with ergonomically arranged favourite key (CLASSIC)
• The complete range of sewing equipment, attachments and optional equipment guarantees the optimum equip-ment solution for nearly all sewing operations

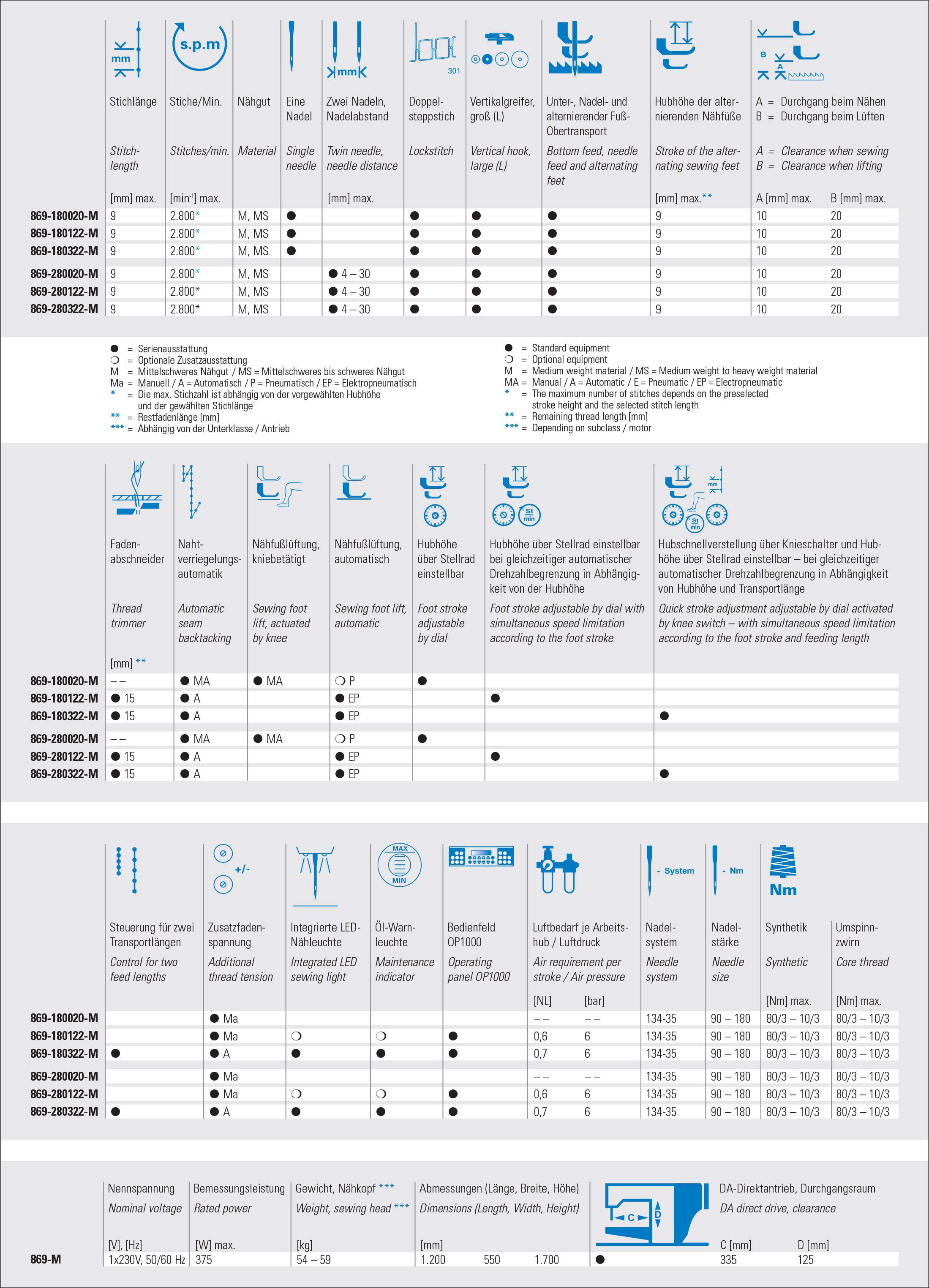

SPECIFICATIONS :
